Steel Residential Garage Doors
Gallery® Steel
Grooved panel steel carriage house garage doors with or without insulation.
We’ve taken the iconic raised panel steel garage door and given it a vintage feel by adding a grooved panel design, optional decorative windows and wrought iron hardware with many unique color choices including Ultra-Grain®, Clopay’s exclusive faux woodgrain paint finish.
Overview
When you’re looking for carriage house garage doors with the durability of steel, choose the Gallery® steel doors by Clopay®. Whether your vision for your home’s exterior is elegant, sleek, unique, or somewhere in between, the versatile design of the Gallery® can provide just the look you need to rejuvenate your home’s exterior.
Construction Overview
View All Door & Window Combinations
- Available in 3, 2 or 1-layer construction options.
- Insulation options include 2″ or 1-3/8″ Intellicore® polyurethane, 2″ or 1-3/8″ polystyrene or 1-5/16″ vinyl backed polystyrene.
- Insulated door R-values range from 6.3 to 18.4.
- The steel skins are protected by the use of a tough, layered coating system, which includes a hot-dipped galvanized layer and baked-on primer and top coat.
- WINDCODE® door reinforcement product available for high wind load applications. (Click for details)
Design Overview
- Grooved-panel steel carriage house designs available in short- and long-panel options.
- 15 factory finish paint colors available, including almond, black, Ultra-Grain® Oak Walnut Finish and more.
- Multiple glass options available including acrylic, insulated, frosted, seeded, rain and obscure options.
- Window grilles for easy cleaning.
- Comes complete with spade lift handles and step plates. Additional decorative hardware options available.
(For 3 Layer and 24 gauge doors)
(For 25 gauge doors)
Environmental Assurance
Clopay doors are compliant with environmental laws and regulations. Clopay doors do not contain HFCs. All Clopay doors are compliant with:
- California SB 1013
- Washington HB 1112 – Hydrofluorocarbon Greenhouse Gas Emissions
- Canadian regulations amending the ozone-depleting substances and halocarbon alternatives regulations
- New Jersey A-5583/S-3919 – Greenhouse Gas Bill
LIFTMASTER® ELITE SERIES™
Clopay Recommends LiftMaster® Elite Series® openers for these garage doors. These openers have a range of features that truly make lives easier.
Clopay Recommends LiftMaster® Elite Series® openers for these garage doors. These openers have a range of features that truly make lives easier.
Construction
Gallery® Steel

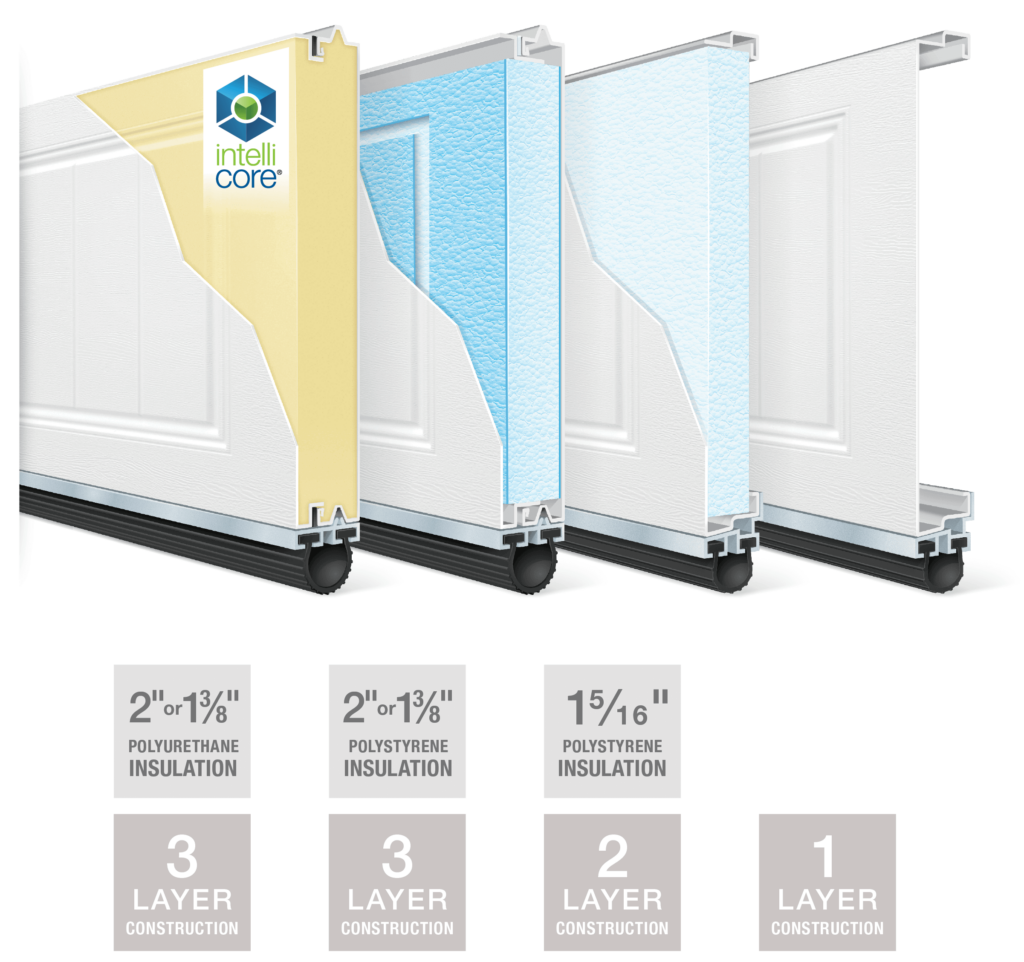

- Available in 3-layer, 2-layer or 1-layer construction
- 2″ or 1-3/8″ Intellicore® polyurethane, 2″ or 1-3/8″ polystyrene or 1-5/16″ vinyl backed polystyrene insulation available. Insulated door R-values from 6.3 to 18.4
- Replaceable vinyl bottom weather seal in rust free aluminum retainer helps protect against the elements.
- Window grilles are removable for easy cleaning.
- Safe-T-Bracket® – Prevents serious injury that could occur if the bottom bracket were removed with the garage door closed and under tension.
- Rust-Prevention System – Steel skins are protected through a tough, layered coating system, including a hot-dipped galvanized layer, a protective metal oxide pre-treatment and a baked on primer and top coat.
Safe T-Bracket®
Rust-Prevention System
Door sample shown in Standard White.
Product complies with 2015 IECC air infiltration requirement of 0.40 cfm/ft2 or less (IECC, Section C402.5.2)
Warmer. Quieter. Stronger.
Garage doors featuring Intellicore® insulation technology represent the ultimate smart choice for homeowners. Clopay’s Intellicore® is a proprietary polyurethane foam that is injected into a garage door, expanding to fill the entire structure. The result is a door with incredible strength, energy efficiency and durability. (Click for details)
Design Options
DOOR DESIGNS
SHORT PANEL
LONG PANEL
DOOR DESIGNS
SOLID TOP SECTIONS
SHORT SOLID
LONG SOLID
TOP SECTIONS WITH WINDOWS
PLAIN SHORT
REC12
SQ22
PLAIN LONG
REC14
SQ24
ARCH1 PLAIN
ARCH1 WITH VERTICAL GRILLE14
ARCH1 WITH GRILLE24
ARCH2 PLAIN
ARCH2 WITH GRILLE24
ARCH2 WITH VERTICAL GRILLE14
KRISTIN SHORT
KRISTIN LONG
TRENTON SHORT
TRENTON LONG
CLAYTON SHORT
CLAYTON LONG
WROUGHT IRON SHORT*
WROUGHT IRON LONG*
WROUGHT IRON ARCH*
DOUBLE TOP SECTIONS
ARCH3 PLAIN
ARCH3 WITH GRILLES
ARCH3 WITH VERTICAL GRILLES
Speciality Glass Options
SEEDED
RAIN
FROSTED
OBSCURE
Colors
STANDARD WHITE (W)
STANDARD WHITE (W)
ALMOND(W)
ALMOND(W)
DESERT TAN(W)
DESERT TAN(W)
SANDTONE (W)
SANDTONE (W)
BRONZE (W)
CHOCOLATE (W)
CHOCOLATE (W)
MOCHA BROWN (W)
CHARCOAL (W)
BLACK (W)
BLACK (W)
ULTRA-GRAIN OAK MEDIUM FINISH (S)
ULTRA-GRAIN OAK DARK FINISH (S)
ULTRA-GRAIN OAK WALNUT FINISH (W)
ULTRA-GRAIN OAK SLATE FINISH (W)
ULTRA-GRAIN OAK SLATE FINISH (W)
ULTRA-GRAIN OAK WALNUT FINISH (S)
LUSTRA BLACK (M)
LUSTRA CHARCOAL (M)
LUSTRA SILVER (M)
We require use of a pre-approved paint/s having a LRV of 38 or higher. Use of other paints will void the door’s warranty.
Hardware Designs
HANDLES
SPADE LIFT HANDLES (included)
SPEAR LIFT HANDLES
COLONIAL LIFT HANDLES
DECORATIVE LIFT HANDLES
TWISTED "L" HANDLE
TWISTED "L" HANDLES
HINGES
SPADE STRAP HINGE
SPEAR STRAP HINGE
COLONIAL STRAP HINGE
PLATES
Spear Step Plate
Spade Step Plate
COLONIAL STEP PLATE
Media
Product Brochures
Gallery Collection 3-Layer Construction
Gallery Collection Non-insulated 1 & 2 Layer
Ultra-Grain Paint Option Brochure
Products available through Independent Dealers
Installation & Care
Gallery 3-Layer Installation and Maintenance Instructions
Gallery 1 and 2 Layer Installation and Maintenance Instructions
1 Year Installation Warranty
